Vanlife Solar Power Guide:
Harness Sustainable Energy Off-Grid

A beginner-friendly guide for solar power

How Does Solar Energy Work in a Van?

What Size of Solar Panels Do I Need for Vanlife?

How do you charge the batteries in your electrical system?

What Is The Lifespan Of Solar Panels for Cafper Vans?

Do you have aspirations of traveling and living entirely off the grid?
Or if you want to live in your campervan full-time and need electricity for everything, including your coffee maker.

A solar power system is necessary for powering everything from lighting to charging electronics—without having to plug into the grid—whether you're planning for quick trips or a full-time van existence!

I will always remember my first month of driving my first van conversion. I soon discovered that I had all the power I required from a single huge solar panel! The sense of independence was amazing, free from the daily burdens and expenses of winter heating fuel and electricity bills.

Installing a solar system in your campervan is a step toward the ability to roam without worrying about power supplies; it's not just about being self-sufficient. You can adapt the system to your lifestyle by selecting the appropriate parts and being aware of distinctions such as series versus parallel connections, monocrystalline versus polycrystalline panels, and the significance of an effective solar charge controller.

With helpful examples from vanlifers who are already living the dream, we'll go over all you need to know in this guide to install your own solar power setup, from the parts to installation advice. So grab a seat, and let's explore what you need to know about using solar electricity in your van.

Frequently Asked Questions about Solar Power for Campervans

1. Which kind of solar panel, monocrystalline or polycrystalline is ideal for campers?

   Monocrystalline panels are more space efficient and efficient than polycrystalline ones, they are frequently suggested for campervans. Additionally, they thrive in warmer areas, which is advantageous for travel.


2. Do I need an MPPT or PWM charge controller?

   An MPPT controller is more efficient and optimizes your solar panels’ performance, especially when light conditions vary. For the majority of installations, MPPT is a preferable option because PWM is less efficient despite being less expensive.


3. What’s the difference between series and parallel wiring for solar panels?

   Series wiring results in higher voltage, which suits a setup with limited space for a large charge controller. Parallel wiring is ideal if some panels might be shaded since the system will continue to produce power.


4. How often do I need to clean my solar panels?

   Panels should be cleaned frequently to preserve maximum performance, particularly after dusty excursions or pollen-rich locations. The efficiency of dirty panels can be greatly decreased.


5. Can I install a solar power system myself?

   DIY installation is feasible, safety is crucial, particularly when working with electrical systems. Hiring an electrician to check the installation if you're not sure can be a smart investment for system longevity and safety.

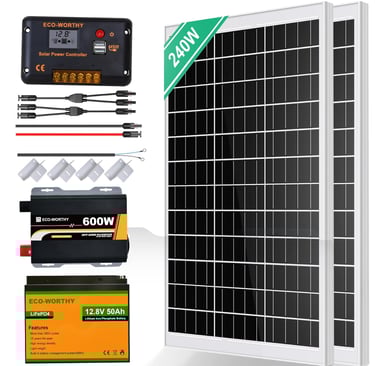

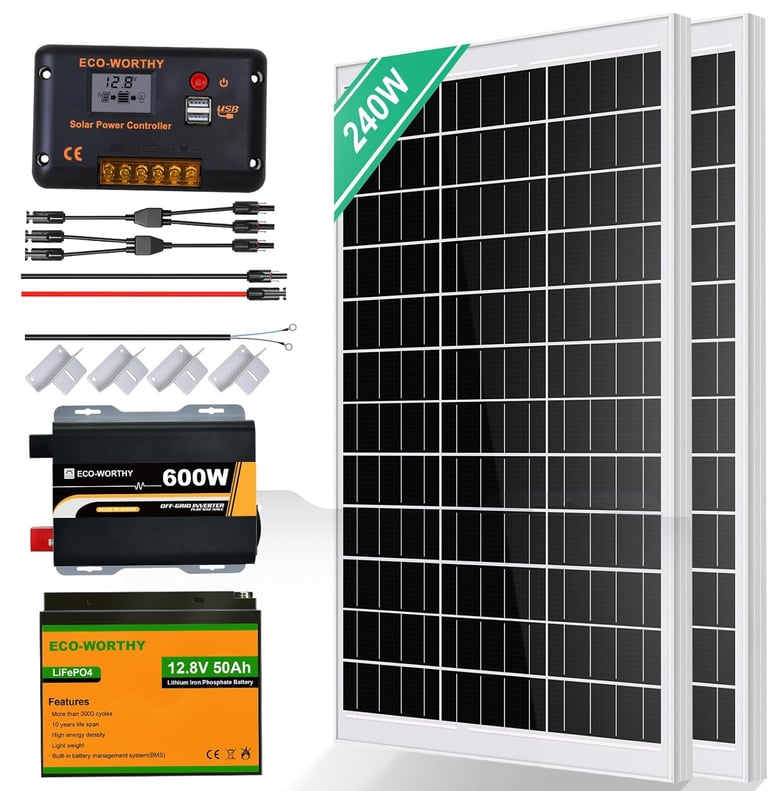

Overview: Components of a Campervan Solar Power System

Before jumping into the installation, let’s break down each component that makes up a solar power system. Each part is crucial for getting electricity in your van—and keeping all your gear running smoothly.

• Solar Panels – Mounted on the roof to capture solar energy and convert it into electricity. There are two main types: monocrystalline and polycrystalline panels.

• Wiring – Carries electricity from the solar panels to your leisure batteries. You can wire panels in series or parallel, depending on your system.

• Solar Charge Controller – A device that regulates voltage to ensure your batteries charge correctly and safely.

• Battery – Stores the energy so you can use electricity when the sun isn’t shining.

• Mounting Kit – All the hardware you need to install the solar panels on your roof.

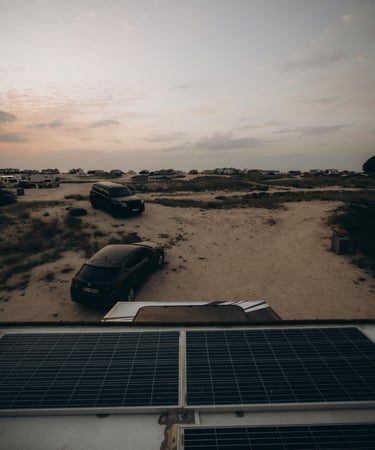

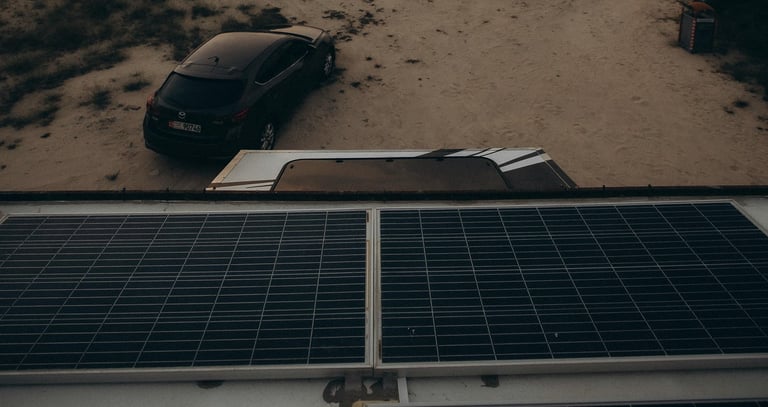

How to Install Solar Panels for a Self-Sufficient Vanlife

Wiring Solar Panels in Series vs. Parallel

To transfer energy effectively, you need to wire your solar panels correctly. Here’s the difference:

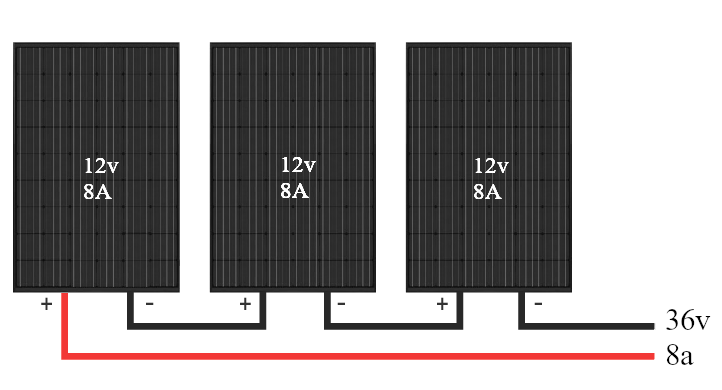

Series – Higher Voltage

When wired in series, the positive terminal of one panel connects to the negative terminal of the next..

Pros:

• Produces higher voltage with the same current (amps), allowing you to use a cheaper solar charge controller.

Cons:

• If one panel is shaded, the entire system’s productivity drops significantly.

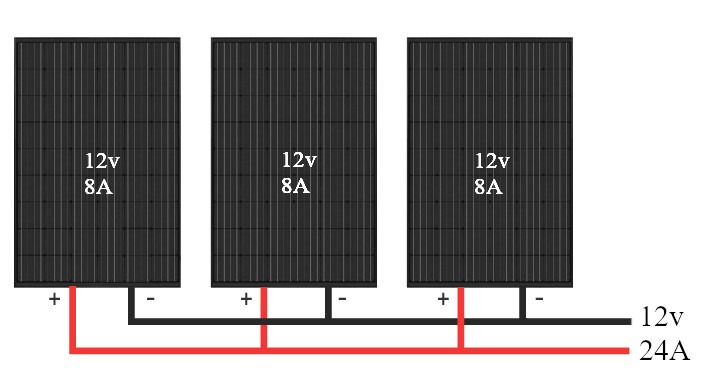

Parallel – Higher Current

In parallel, positive terminals connect to each other and negative terminals connect to each other. Current increases while voltage remains the same.

Pros:

• If a panel is damaged or shaded, the system’s performance isn’t affected as much.

Cons:

• Requires a more powerful (and pricier) solar charge controller.

Which wiring setup is best? It depends on your needs. Series wiring works for simpler systems with lower amp requirements, while parallel wiring is great if you need flexibility.

Solar Panels – Which Type is Right for Your Van?

When sunlight hits your solar panels, the energy is absorbed into the PV (photovoltaic) cells, converting it into usable electricity.

Monocrystalline Solar Panels

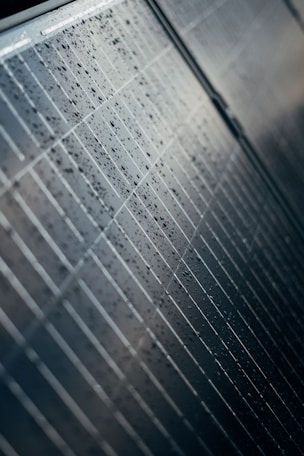

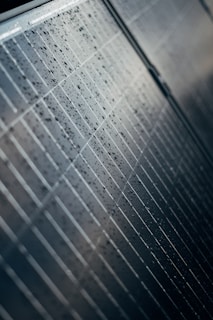

Monocrystalline, or “mono” panels, are made from a single silicon crystal, giving them an efficient and sleek dark black look.

• Advantages:

  • Higher efficiency than polycrystalline panels

  • Longer lifespan and better performance in heat


• Disadvantages:

  • More expensive than polycrystalline panels

  • May perform slightly worse in colder climates


Personally, I prefer monocrystalline panels—for both performance and aesthetics.

Polycrystalline Solar Panels

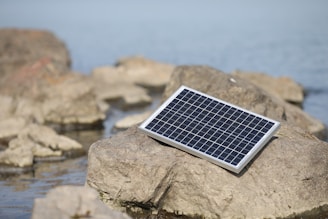

Polycrystalline, or “poly” panels, have a blue tint and are made from multiple silicon crystals.

• Advantages:

  • Cheaper than monocrystalline panels

  • Better performance in colder climates


• Disadvantages:

  • Less efficient than monocrystalline, meaning you’ll need more panels to generate the same amount of energy

Solar Power Explained: How Camper Van Systems Generate Energy

Here’s the short version: when the sun shines on your solar panels, they convert that energy into electricity, charging the van’s leisure battery. This stored energy powers all the electronics in your campervan.

For the solar power system to work effectively, all parts must work together, with each component playing an essential role.

Ready to Get Started?

A solar power system might seem complicated, but once you understand the basics, it’s easy to customize and install. Need more help? Check out our other posts on batteries and cable sizing, plus this handy tool for calculating the correct cable size to suit your needs!

It’s time to harness the sun and start your off-grid journey!

With the right solar system in your campervan, the limits of adventure are endless

Choosing the Right Solar Charge Controller

If you only go out occasionally and are on a tight budget, a PWM might be an okay choice. But if you're a serious adventurer who wants maximum energy, especially on longer trips, then the MPPT controller is a no-brainer!

Regardless of the choice, a solar regulator will keep the batteries safe and charged, so you can enjoy the freedom without interruption. 💡

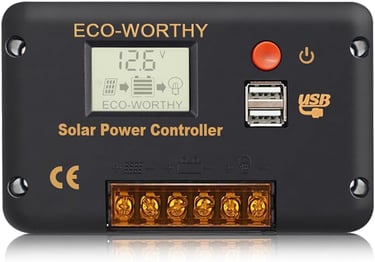

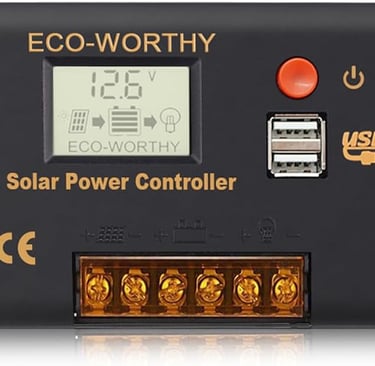

1. Pulse Width Modulation (PWM) – The Budget Option

PWM controllers are simpler and cheaper. They lower the voltage from the solar panels to match the leisure batteries but are less efficient than the MPPT option.

A PWM controller works by lowering the voltage from the solar panels to match the leisure batteries. The downside? It's not as efficient as the MPPT option, meaning you may not get maximum charge on cloudy days.

💰 Price: Around SEK 300-500 (€25-40)—suitable for budget-friendly setups and short trips.

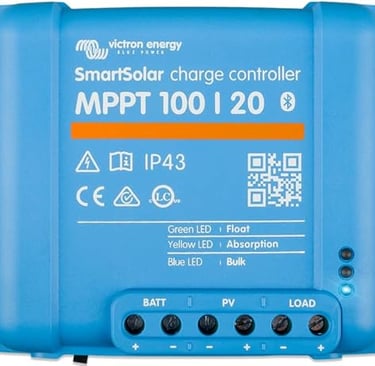

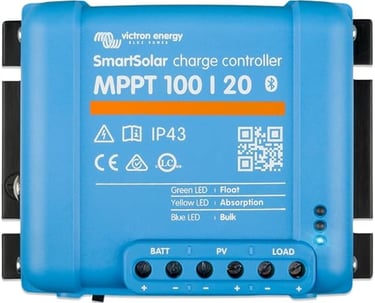

2. Maximum Power Point Tracking (MPPT) – The Efficiency King!

MPPT controllers are a bit pricier, but their efficiency is on a whole new level! Rather than lowering the voltage, MPPT controllers work at the maximum power point of the panels, converting the energy efficiently for your batteries.

An MPPT controller can be up to 25% more efficient than a PWM controller, meaning more charging even under harsh conditions. But watch out for cheap copies! If the price seems too good to be true, it often is.

💰 Price: From SEK 1,100 (€95) and up. It’s an investment, but absolutely worth it if you want enough power for cooking, working, and living on the road.

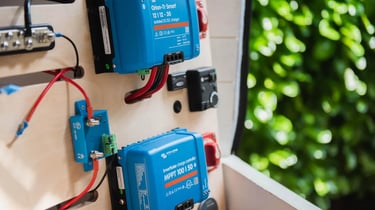

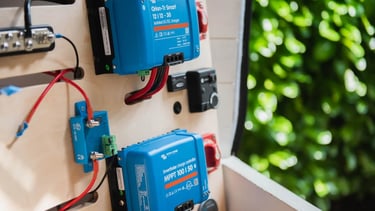

Solar Charge Controller: The Brain of Your Campervan Solar System!

So, you’ve installed the solar panels and set up the wiring—now comes the fun part! Soon your solar panels will start generating electricity, but before it reaches the batteries, we need a hero on the scene—the solar charge controller!

What does a solar charge controller do?

A charge controller, or regulator, is a must for your solar setup. Its job is to regulate the voltage from the solar panels so that your leisure batteries receive the correct amount of power. Without a controller, batteries risk overcharging, which could leave you stranded with dead batteries!

Types of Solar Charge Controllers:

Three Solar Systems for Every Budget

If you’ve never converted a van before, it can be very difficult to know what’s needed and how much it might cost. That was one of our biggest challenges when we built our van.

That’s why we’ve tried to help you along the way with three different package options to at least give an estimate of what it might cost.

Budget System (around 2600 SEK / €240 excluding battery). Perfect for basic electrical needs like lighting and phone charging:

• 100W solar panel: around 1100 SEK (€100)

• Inverter: around: 400 SEK (€35)

• Charge controller: around 550 SEK (€50)

• Cable kit and mounts: around: 330 SEK (€30)

How Much Solar Power Do You Need:
Calculate Your Watts

To figure out how much solar energy you need for your campervan, there are a few simple steps to follow:

1. List all your electrical devices

   Think about – what gadgets will you be using? Common devices in a campervan might include:

   • LED lights

   • Fridge

   • Laptops and mobile phones

   • Fans

   • Water pump

   • Kitchen electronics, like an induction hob

   • Inverter


2. Calculate your daily energy consumption

   Note the energy consumption (in watts) of each device and how many hours you plan to use it per day. If you have devices with energy consumption specified in volts and amperes, use the formula:

   Watt (W) = Volt (V) × Ampere (A)

   Then, multiply the wattage by the number of hours per day you will use the device to get watt-hours (Wh) per day.

   Watt-hours (Wh) = Watt (W) × hours per day

Calculate your total daily energy consumption

Next, create a summary in Excel where you can easily get an overview of all your energy consumption. Set up simple formulas that are adjustable and easy to experiment with.

Take the power multiplied by the number of hours you will have the light or device running, and that gives you your daily consumption. Then, sum all the component consumptions to get your total. Divide the total energy consumption by the voltage in your system (12V/24V), and you’ll know how many amperes your system uses per day.

Example:

• Lighting: 2.5W × 3 devices × 4 hours = 60 Wh

• Mobile chargers: 4.0W × 2 devices × 3 hours = 24 Wh

• Total: 76 Wh ÷ 12V = 7A per day

  [Learn more here about batteries and electrical theory]

Dimensioning of Solar Power For Vanlife

4. Adjust for inefficiency

   Many energy systems have energy losses, especially if you’re using an inverter to convert DC power from solar panels to AC power. If your inverter, for example, has an efficiency of 85-90%, divide your total daily consumption by the efficiency to account for the conversion loss.

   Adjusted consumption = Total daily Wh ÷ Inverter efficiency

   For example, for a 12V battery with a daily consumption of 500 Wh

   500Wh / 0,9 ≈ 555,6Wh


5. Determine the number of sunlight hours

   Depending on your location and the season, you can expect 3–6 hours of sunlight per day. This is about how long the sun shines strong enough to charge the solar panels.


6. Calculate the number of solar panels

   Divide your total daily energy consumption (Wh) by the number of sunlight hours to get the wattage your solar panels need.

   Required solar panel power = Total daily Wh ÷ Hours of peak sunlight


   For example, if you have a consumption of about 500 Wh and 4 hours of sunlight on a given day, you would need a panel capacity of: 500 Wh ÷ 4 hours = 125 W


7. Add a safety margin

   Since weather can be unreliable, most people add a safety margin of 25–50%. Multiply the estimated power by 1.25–1.5.

Mid-Range System (around 8200 SEK / €760 excluding battery)

Can handle more and is suitable for longer off-grid stays:

• 3×100W solar panels: around 3300 SEK (€300)

• Pure sine wave inverter: around 2500 SEK (€230)

• Charge controller: around 1400 SEK (€130)

• Mounting kit: around 1100 SEK (€100)

High-End System (around 20000 SEK / €1875 excluding battery)

For those who want all the comforts, like a fridge, coffee machine, and more:

• 4×130W solar panels: around 8800 SEK (€800)

• 3000W inverter: around 8400 SEK (€765)

• Charge controller and solar shade: around 2200 SEK (€180)

How to Install Your Solar System

Now that you know what you need, it’s time to install the system!

1. Order all components

   Make sure all parts are in place so the installation can go smoothly.

2. Create a wiring diagram

   A simple diagram will help you keep track of how everything connects, from the solar panels to the charge controller and batteries.

3. Mount the solar panels

   Clean the roof and carefully mark where to drill. Remember to route the cables safely.

4. Finish the connections

   Connect the panels and link them to the charge controller and battery as per the diagram.

5. Safety check

   Do a final check to make sure everything is working. Consider hiring an electrician for added security.

Maintenance and Operation

Just like your campervan’s engine needs maintenance to keep running smoothly, your solar panels need some care to stay in top shape. One of the most important parts of maintaining well-functioning solar panels is cleaning them and removing debris. Dirty panels covered in leaves will perform much less efficiently than clean, shadow-free panels.

Keep your panels shining clean! If you regularly check and clean them, you’ll not only extend their lifespan, but you’ll also ensure they provide more energy to your battery. And who doesn’t want to stay off-grid longer? A small effort can make a big difference!

Final Thoughts

That’s all for our campervan solar guide! I hope this guide has helped you to understand more about how solar energy works and has given you a clear picture of the type of solar system you need to build your personal campervan build.

I hope you now have a better understanding of what you solar system requires, regardless of whether you want a little solar system or enough electricity to run everything from your mixer to your mobile charger. All that's left to do is make plans and anticipate all of the incredible experiences that await you and your new, powerful wheeled companion!

Although installing and maintaining a solar system in your campervan may seem difficult, it is completely doable with the correct knowledge and a little perseverance. Recall,.

Let the sun shine on your adventures, and don’t forget to give your solar panels a little love! Check out more posts on Camperpals.com to continue your journey toward the perfect campervan lifestyle. 🌞✨

What’s the Lifespan of Solar Panels on Campervans?

Apart from disasters during travel, solar panels will last anywhere from 15 to 30 years. It's safe to say you won’t need to replace your van’s solar panels anytime soon!

Over time, the energy production of a solar panel will generally decrease by about 0.5% per year, so after a 25-year useful lifespan, they’ll produce about 12% less energy than they did originally. Each panel will vary slightly, with more expensive panels degrading slower and having a longer expected lifespan.
